CHW系列（帶無線遙控器）
型號 : CHW-300/500/1000
| MODEL | Load(KG) |
Speed (M/min) |
Motor (W) |
Voltage | Lift(M) | Chain | Chain falls line | Braking Methods | Reversal | N.W(KG) | G.W(KG) |
| CHW-300 | 300KG | 12M | 1400W |
100-120V 220-240V 50/60HZ |
3(6) | Ø6.3×19.1 | 1 |
Electromagnetic Brake Mechanical Brake |
30%ED | 20 | 24 |
|

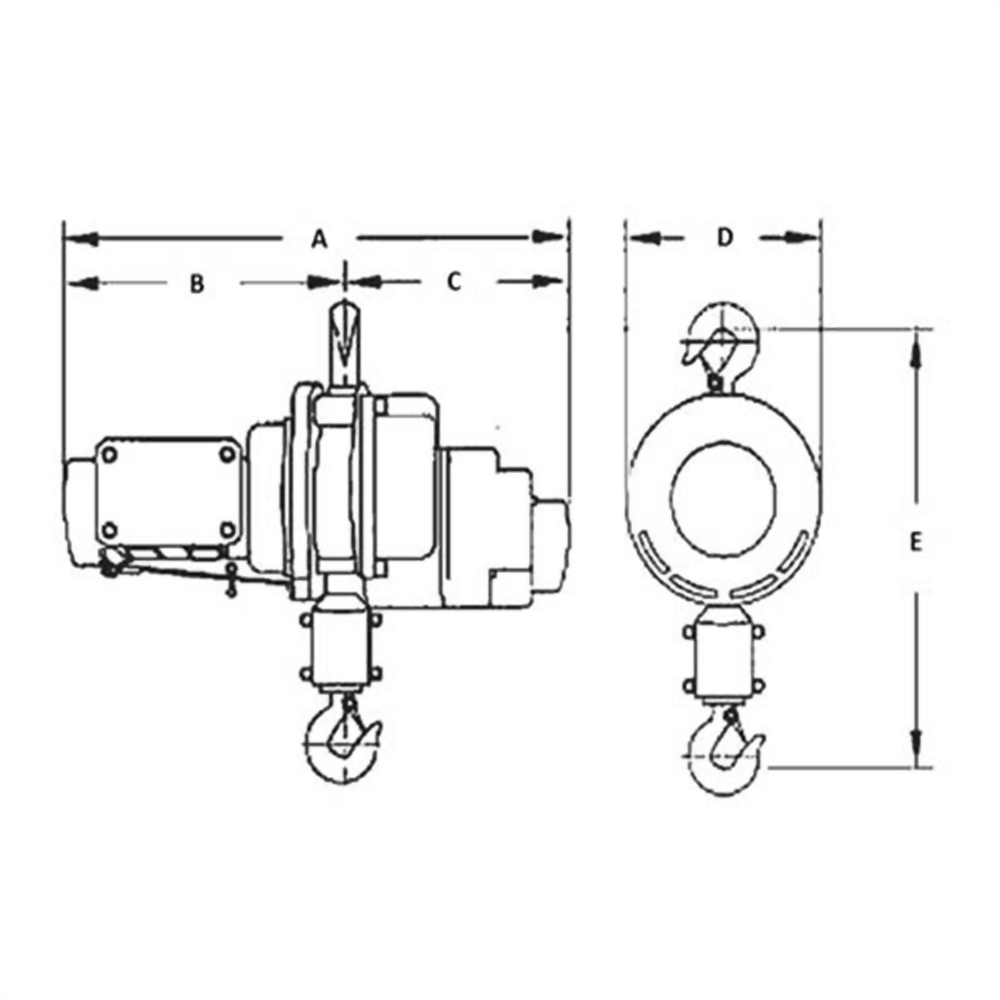

DIMENSION(MM)
|
|||||
| MODEL | A | B | C | D | E |
| CHW-300 | 450 | 250 | 200 | 290 |
380 |
Braking
Methods
Model
Load(KG)
Speed
(M/min)
Motor
(W)
Voltage
Lift(M)
Chain
Chain falls line
Reversal
N.W(KG)
G.W(KG)
CHW-500
500KG
6M
1400W
100-120V
220-240V
50/60HZ
3(6)
Ø6.3×19.1
1
Electromagnetic Brake
Mechanical Brake
30%ED
20
24
MODEL
A
B
C
D
E
CHW-500
450
250
200
290
380
| Model |
Load (KG) |
Speed (M/min) |
Motor(W) | Voltage | Lift(M) | Chain | Chain falls line | Braking Methods | Reversal | N.W(KG) | G.W(KG) |
| CHW-1000 | 1000KG | 3M | 1400W |
100-120V 220-240V 50/60HZ |
3(6) | Ø6.3×19.1 | 2 |
Electromagnetic Brake Mechanical Brake |
30%ED | 24 | 28 |
|
DIMENSION(MM)
|
|||||
| Model | A | B | C | D | E |
| CHW-1000 | 450 | 250 | 200 | 290 |
450 |

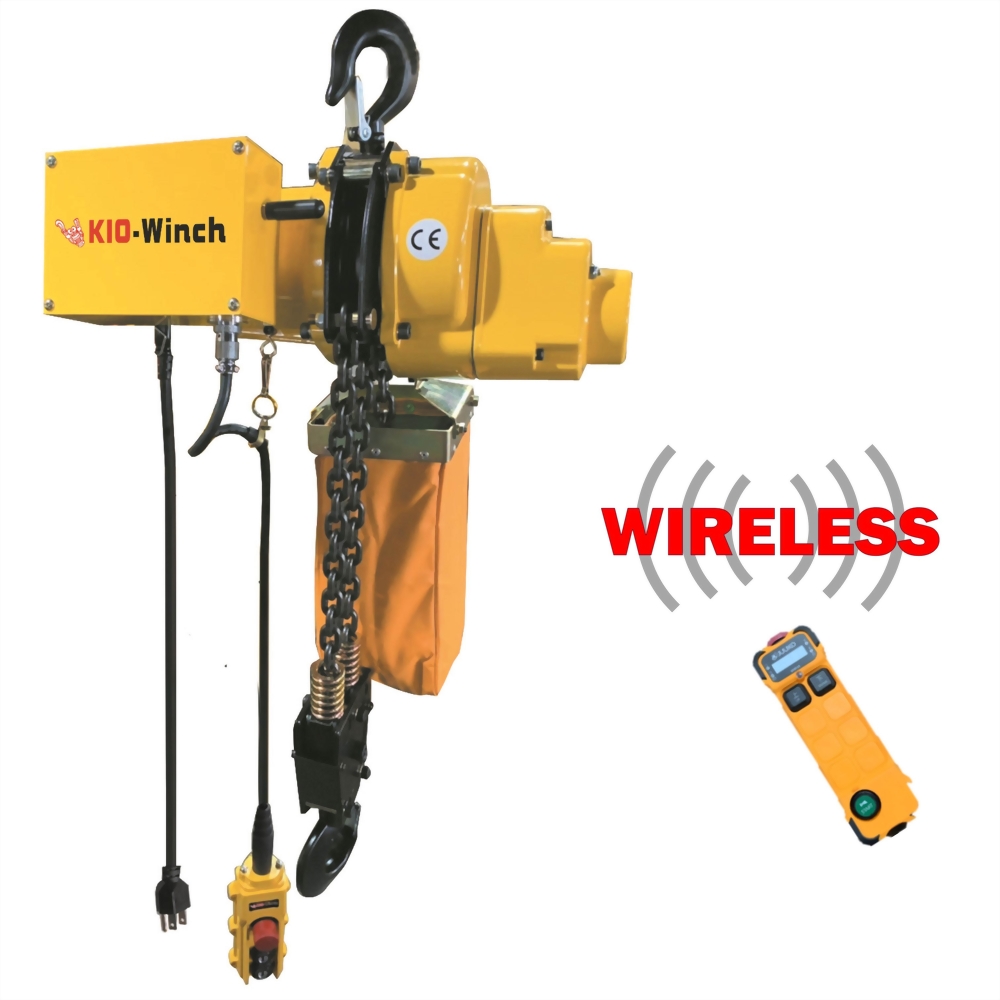

1.Wired/Wireless Remote Control Type
It's suitable for two types wired or wireless
2.Friction Clutch
Protect Machine, Operator and prevent overloading and over travel that could damage hoist
3.Braking
Dual braking system combines mechanical and Electromagnetic braking,provide instant and safe braking
4.Load Sheave
Provide smoother Lifting and reduce vibration and wear
