型號 : CLW-1000/2000

< 220-240V × 1PH AC >



Model Load
(KG)
Speed
(M/min)
Motor(W) Voltage Lift(M) Chain Chain falls line Braking Methods Reversal N.W(KG) G.W(KG)
CLW-1000 1000KG 5.4M 2500W 220-240V
50/60HZ
3(6) Ø7.1×20.2 1 Electromagnetic Brake
Mechanical Brake
30%ED 26 29


DIMENSION(MM)
Model A B C D E
CLW-1000 500 300 200 250 480





Model Load
(KG)
Speed
(M/min)
Motor(W) Voltage Lift(M) Chain Chain falls line Braking Methods Reversal N.W(KG) G.W(KG)
CLW-2000 2000KG 2.7M 2500W 220-240V
50/60HZ
3(6) Ø7.1×20.2 2 Electromagnetic Brake
Mechanical Brake
30%ED 36.5 40


DIMENSION(MM)
Model A B C D E
CLW-2000 500 300 200 270 580

Features

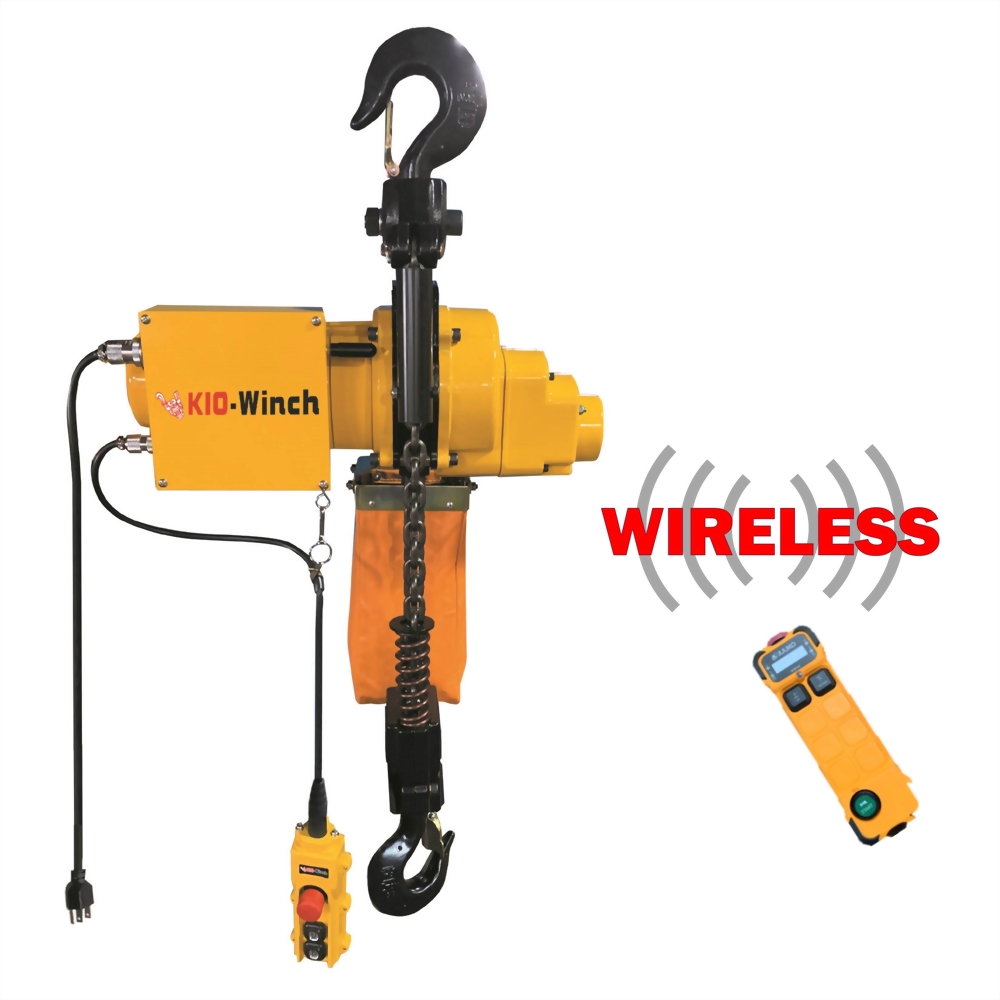

1.Wired/Wireless Remote Control Type

It's suitable for two types wired or wireless
2.Friction Clutch
   Protect Machine,Operator and prevent overloading and over travel that could damage the hoist.
3.Braking
   Dual braking system combines mechanical and Electromagnetic braking,provide instant and safe braking
4.Load Sheave
   Provide smoother Lifting and reduce vibration and wear
